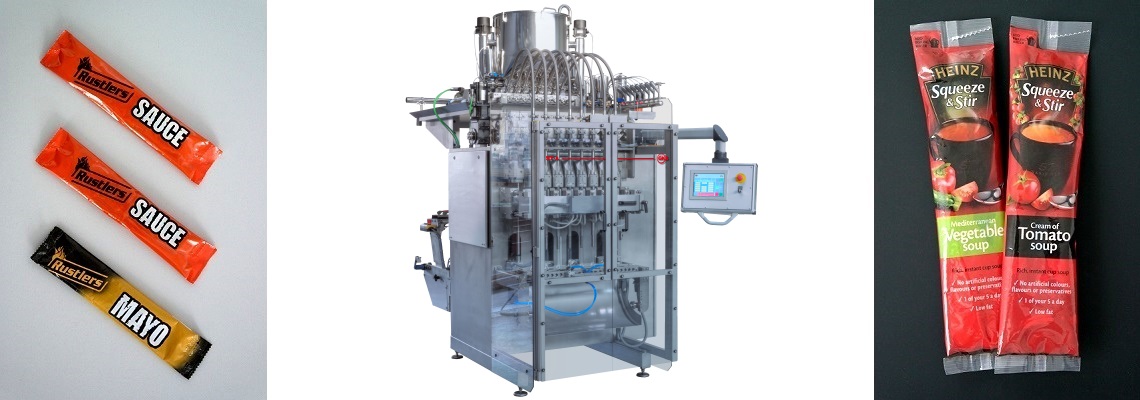

Stickpack Machines


Brief Description

  • stickpack machines of the newest generation
  • developed for high output
  • servo-driven sealing and film pulling
  • vertical, intermittent motion working principle
  • modular structure
  • easy to combine with upstream and downstream machines
  • applicable for various products
  • easy to use and maintain
  • machine frame and control cabinet made of stainless steel

Options

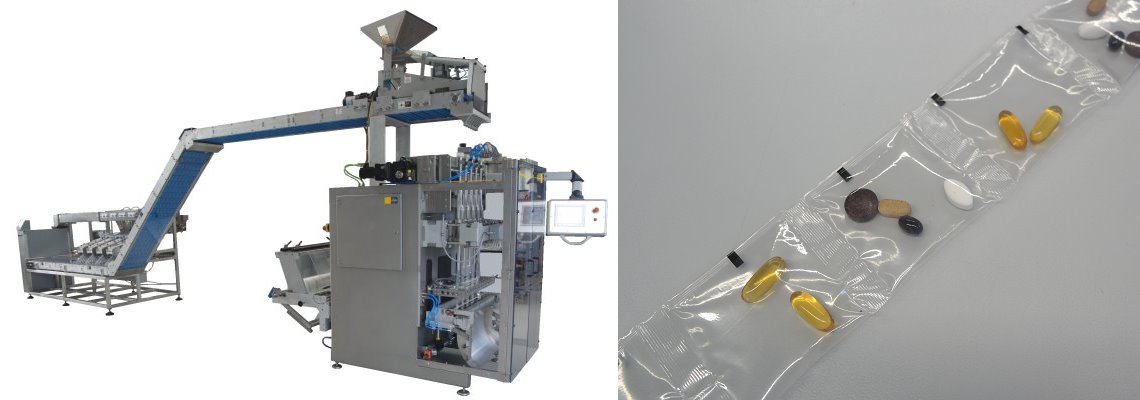

  • combinable with dosing pumps, powder or capsule dosing units

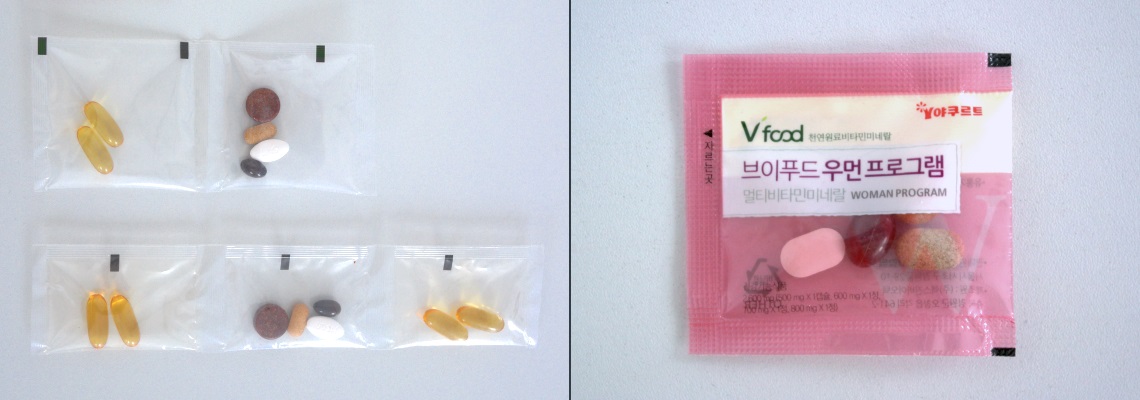

  • 3-side sealed pouches possible
  • contour die punch
  • easy opening aids
  • packing material sterilisation

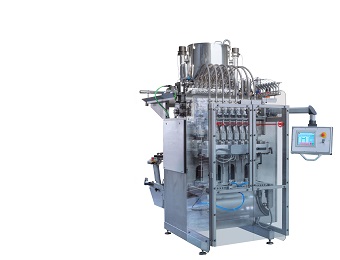

Technical Data (Basic Machine) ST-L
bag width: max. 200 mm
bag length: max. 200 mm
lanes: 2...12
performance: up to 1,080 ppm 1
sealing force: max. 10,000 N
film reel width: max. 820 mm
film reel diameter: max. Ø 600 mm
electrical service: 400 VAC, 50 Hz, approx. 15 kVA
dimensions (l - w - h): 2,300 mm x 1,500 mm x 1,650 mm
weight: approx. 1,700 kg
PLC: Schneider Electric 2

1...dependent on material, product, sachet dimensions & dosing system

2...other PLC's like e.g. Siemens, SEW, Allen Bradley on request
