Pillow Bag Machines

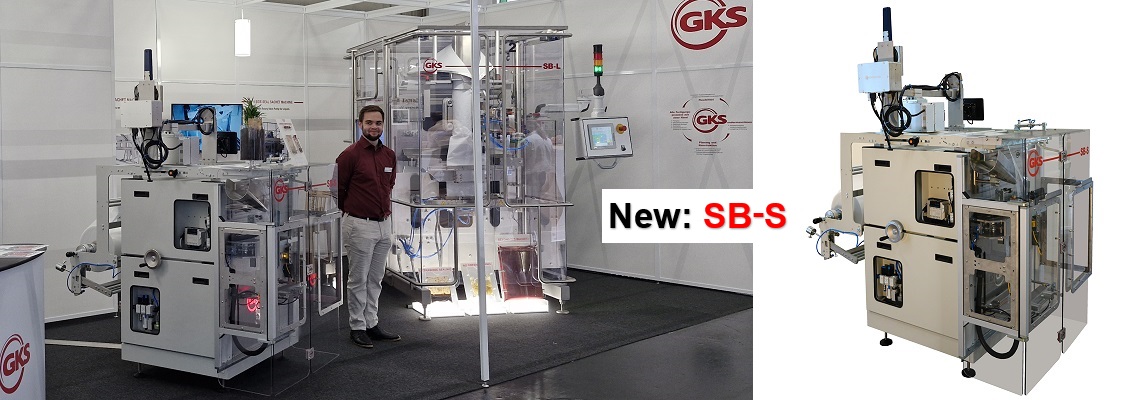

Pillow Bag Machine SB-S

Brief Description

  • vertical pouch packaging machine of the newest generation
  • developed for high availability and reliability
  • for pillow bags up to 2 kg
  • pneumatically driven sealing
  • motor-driven film pulling
  • vertical operation, intermittent
  • modular structure
  • easy to combine with upstream and downstream machines
  • applicable for various products
  • easy to use and maintain
  • machine frame and control cabinet made of steel, painted / stainless steel

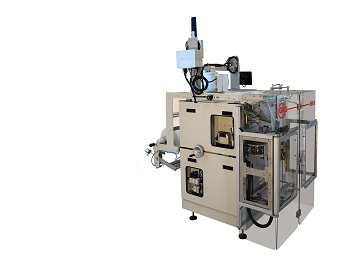

SB-S
Bag Styles - Pillow Bags / Pouches

Technical Data (Basic Machine) SB-S
bag width: max. 340 mm 1
bag length: max. 300 mm
lanes: 1
performance - impulse sealing: up to 35 ppm 2
sealing force: max. 600 N
film reel width: max. 340 mm
film reel diameter: max. Ø 400 mm
electrical service: 400 VAC, 50 Hz, approx. 5 kVA
dimensions (l - w - h): 1,750 mm x 1,130 mm x 1,400 mm
weight: approx. 700 kg
PLC: Schneider Electric 3

1...film in half-tube design

2...dependent on material, product, sachet dimensions & dosing system

3...other PLC's on request

Pillow Bag Machine SB-L

Brief Description

  • vertical pouch packaging machine of the newest generation
  • developed for high availability and reliability
  • for pillow bags up to 5 kg, jumbo bags up to 15 kg or dip-doys (doypacks in 2 lanes)
  • servo-driven sealing and film pulling
  • vertical operation with continuous film transport
  • modular structure
  • easy to combine with upstream and downstream machines
  • applicable for various products
  • easy to use and maintain
  • machine frame and control cabinet made of stainless steel

Options

  • combinable with dosing systems (e.g. feed pumps, multihead weighers or auger fillers)
  • combinable with control mechanisms (e.g. metal detectors)
  • airless pouches
  • Zip
  • Euro-hole
  • easy opening features

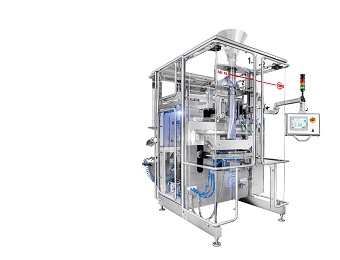

SB-XL

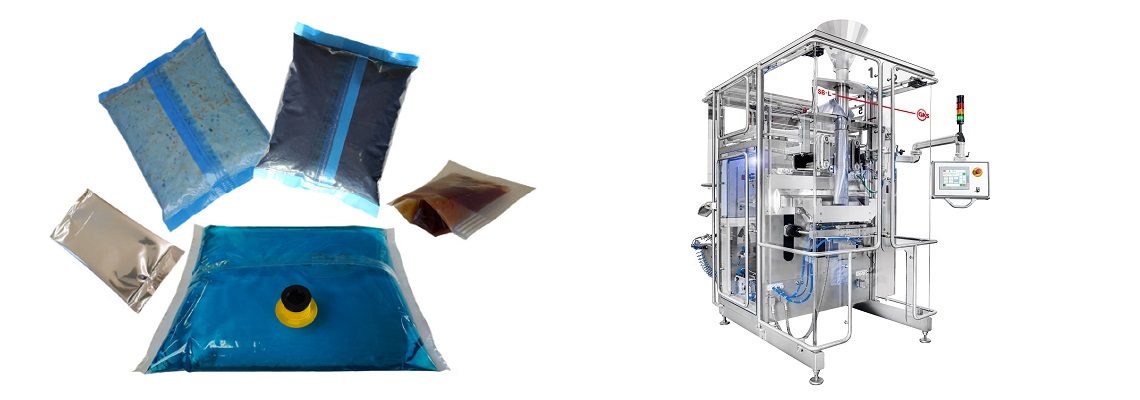

Bag Styles - Pillow Bags / Pouches

Technical Data (Basic Machine) SB-L
bag width: max. 400 mm
bag length: max. 550 mm
lanes: 1 - 2
performance - thermal sealing: up to 60 / 120 ppm 1
performance - ultrasonic sealing: up to 40 ppm 1
sealing force: max. 10,000 N
film reel width: max. 820 mm
film reel diameter: max. Ø 600 mm
electrical service: 400 VAC, 50 Hz, approx. 19 kVA
dimensions (l - w - h): 2,420 mm x 1,700 mm x 2,270 mm
weight: approx. 2,000 kg
PLC: Schneider Electric 2

1...dependent on material, product, sachet dimensions & dosing system

2...other PLC's on request

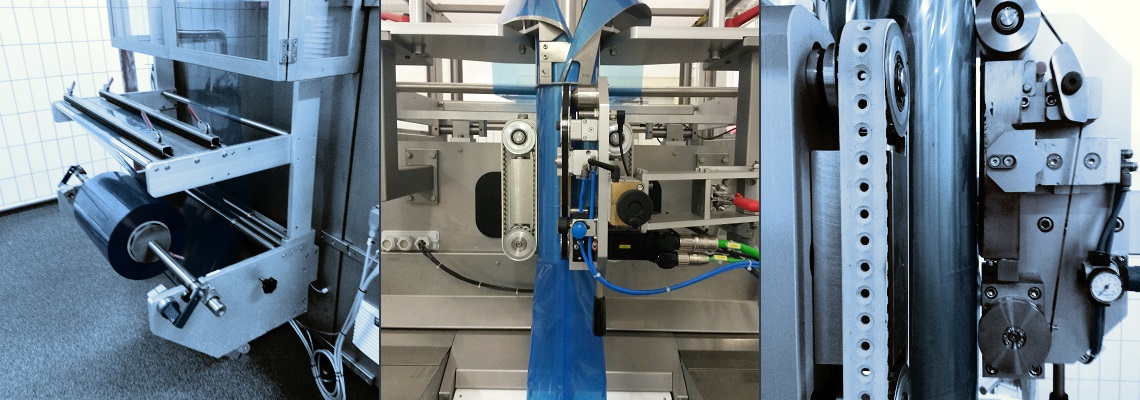

Pillow Bag Machine Machine SB-L (formerly SB 800) in Action
